KBW-90-16-1
时间:2022-11-02浏览次数:337

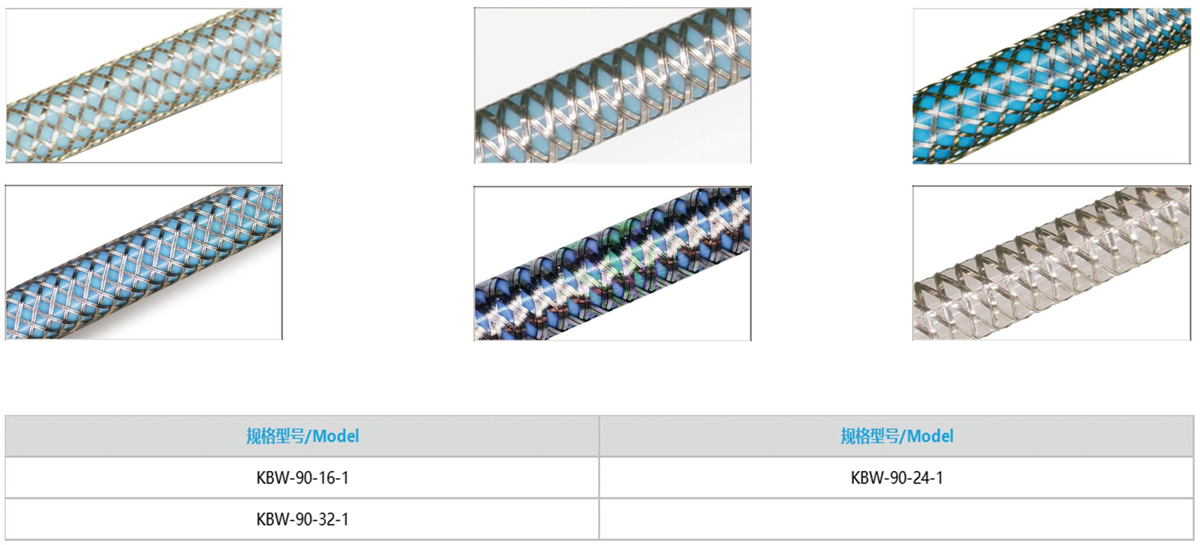

卧式导管编织机系列主要话应于医疗行业,主体包括:编织主机、牵引机构、润滑系统、电气控制系统,显微成像系统。机身全部采用伺服电机驱动,配有人机交互界面;此系列编织机用于各类血管内介入或人体自然腔道内介入的或鞘管编织加强层的编织,如颅内神经微导管,中间通路导管,造影导管,导引导管,一次性内窥镜导管等。可进行不同密度的分段编织,达到理想的推送性、扭控性、远端柔顺性等性能,可以进行1.5F至27F的导管或鞘管的编织工作,如需要其它尺寸的编织作业,可按需定制。

The Horizontal conduit braiding machie seies is mainly sultabl for the medical industry. The main boy includes:weaving main machine, traction mechanism, Iubrication system, electrical control system, microscopic imaging system. The body is driven by servo motor and equipped with PLC touch screen. The language is both Chinese and English. Ths SERIES OF BRAIDING MACHINE IS USED FOR ALL KINDS of ENDC VASCULAR intervention OR human natural luminal intervention or sheath BRaiding reinforcement layer, such as intracranial nerve microcathete,intermediate access catheter, angiography catheter,guide catheter, disposable endoscope catheter, etc It can be woven in diferent density segments to achieve the ideal performance of pushing, twisting and controling,distal complance and so on. Braided tubing or sheath from 1.5F to 27F. Other braided sizes can be customized.
